Type V24 og B24

General

DANHEAT air heaters cover capacities ranging from 22 – 2200 kW, and are delivered in vertical or horizontal executions, oil or gas fired. The heaters are intended for bigger or smaller rooms, where instant heat is required e.g. workshops, factories, garages, storage halls, sports halls etc. The heaters are used free-standing or are connected to canals.

Construction

The heaters are in a construction of heavy corner posts and double insulated cover plates. Smoke outlet is as a standard placed on top, but can be placed with the outlet going out the side. Combustion chamber and first turn chamber are made of stainless steel.

Automatic

All the air heaters are controlled by a programmable room thermostat with clock function, which are placed separately in the room.

Function

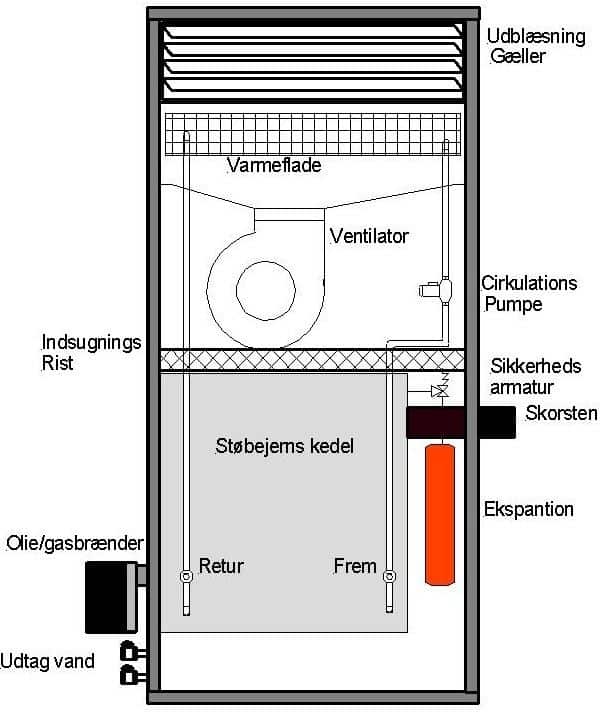

DANHEAT air heaters are constructed by simple principles with directly air heating, which gives a high efficiency and hereby a safe operation with low costs. From the drawing you can see, how the air passes the combustion chamber and the heat exchanger and is heated directly. The heated air blows directly out in the room, which calls for heat, or is lead out through canals to other rooms.
